1241634-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1241634-1
Datasheet:
Description:

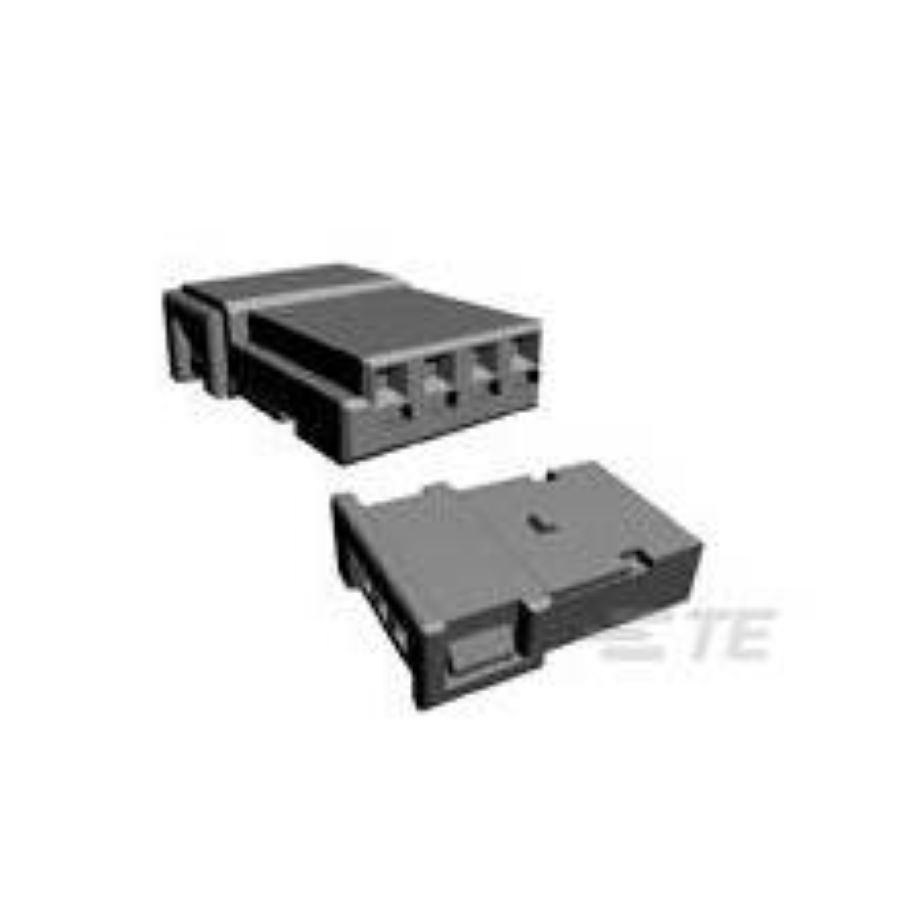

Automotive Connectors Cable, Free Hanging Number of Positions:4 Female 24 AWG to 18 AWG
| Parameter | Value |
|---|---|
| Length | 12.6 mm |
| Width | 6.1 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 18.85 mm |
| Packaging | Bulk |
| Depth | 18.8 mm |
| Radiation Hardening | No |
| Pitch | 2.54 mm |
| Flammability Rating | UL94HB |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Female |
| Number of Contacts | 4 |
| ELV | Compliant |
| Connector Type | Receptacle, Socket |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Circuit Application | Signal |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 24 AWG |
| Housing Color | Black |
| Mating Tab Width | 635 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Polarized | No |
| Hybrid Connector | No |
| Serviceable | No |
| Wire Gauge Range | 24 AWG to 18 AWG |
| RoHS | Compliant |
Stock: 13957
Distributors
pcbx
pcbxUnit Price$0.17526
Ext.Price$0.17526
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17526 | $0.17526 |
| 10 | $0.15047 | $1.50470 |
| 50 | $0.14029 | $7.01450 |
| 100 | $0.13080 | $13.08000 |
| 500 | $0.11823 | $59.11500 |
| 1000 | $0.10687 | $106.87000 |
| 3000 | $0.10272 | $308.16000 |
| 5000 | $0.09873 | $493.65000 |
| 10000 | $0.09490 | $949.00000 |
